022-03871-000
Valve, Relief (Not Shown) 022-03871-000 022-03871-000 022-03871-000
No. Required Per Compressor 1 2 2
38 Device, Unloader See Figure 4
No. Required Per Compressor See Table 1
39 Valve, Solenoid 025-29999-000 025-29999-000 025-29999-000
No. Required Per Compressor See Table 1
40 Coil, Solenoid Less Valve
120 Volt 025-30976-000 025-30976-000 025-30976-000
240 Volt 025-30977-000 025-30977-000 025-30977-000
No. Required Per Compressor See Table 1
41 Gasket, Solenoid Valve 028-12558-000 028-12558-000 028-12558-000
No. Required Per Compressor 1 2 3
42 Screw, 3/8 Hex Cap 021-17690-000 021-17690-000 021-17690-000
No. Required Per Compressor 6 12 18
43 Cover, Access 064-48176-000 064-48176-000 064-48176-000
No. Required Per Compressor 1 2 3
44 Pin, Coiled Spring 029-21378-000 029-21378-000
029-21378-000
No. Required Per Compressor 1 2 3
45 Screw, 7/16 Hex Flange 021-17693-000 021-17693-000 021-17693-000
No. Required Per Compressor 16 32 48
46 Cover, Handhole 064-21645-000 064-21645-000 064-21645-000
No. Required Per Compressor 2 2 2
47 Valve Cage Assembly (Discharge) See Figure 5
48 Screw, Discharge Valve Cage 021-16827-000 021-16827-000 021-16827-000
No. Required Per Compressor 16 24 32
49 Plate, Valve Suction See Figure 6
50 Sleeve, Cylinder 064-48192-000 064-48192-000 064-48192-000
No. Required Per Compressor 4 6 8
51 Seal, O-Ring 028-12259-000 028-12259-000 028-12259-000
No. Required Per Compressor 2 4 6
Cylinders Used On 1 & 2 1, 2, 5 & 6 3, 4, 5, 6, 7 & 8
*Not shown in Cut-away. Located at motor end bearings only.
6 YORK INTERNATIONAL
ITEM DESCRIPTION COMPRESSOR
NO. 4 CYLINDER 6 CYLINDER 8 CYLINDER
52 Piston Assembly See Figure 7
53 Connecting Rod Assembly See Figure 8
54 Terminal Box See Figure 10
55 Valve, Suction Stop 022-02844-000 022-02844-000 022-02845-000
56 Screw, 5/8 Hex Cap 021-16817-000 021-16817-000 021-16818-000
No. Required Per Compressor 4 4 4
57 Gasket (2 Required) 064-47079-000 064-47079-000 064-47204-000
58 Valve, Discharge Stop 022-01394-000 022-01394-000 022-02844-000
59 Screw, 5/8 Hex Cap 021-16821-000 021-16821-000 021-16817-000
No. Required Per Valve 4 4 4
60 Gasket 064-47078-000 064-47078-000 064-47079-000
61 Sight Glass, Oil (2 Required) 026-17581-000 026-17581-000 026-17581-000
62 Sealer, Refrigerant Pipe 013-02894-000 013-02894-000 013-02894-000
63 Valve, Oil Charging 022-01582-000 022-01582-000 022-01582-000
64 Cap, Oil Charging Valve 023-00977-000 023-00977-000 023-00977-000
65 Valve, Oil Check, 1/8 022-04444-000 022-04444-000 022-04444-000
66 Crankcase Heater 120V 025-29650-000 025-29650-000 025-29650-000
240V 025-29651-000 025-29651-000 025-29651-000
67 Heat Conductive Compound 013-00898-000 013-00898-000 013-00898-000
68 Drain Orifice Plug (Not Shown) 064-47349-000 064-47349-000 064-47349-000
No. Required Per Compressor 1 2 3
69 Pipe Plug, 1/4 Square Hd (Not Shown) 023-01972-000 023-01972-000 023-01972-000
No. Required Per Compressor 3 4 5
70 Pipe Plug, 3/8 023-01983-000 023-01983-000 023-01983-000
70A Oil Temp Sensor 025-32966-000 025-32966-000 025-32966-000
71 Pipe Plug, Magnetic Sq Hd 023-15718-000 023-15718-000 023-15718-000
72* Cover Plate, Blank 064-48187-000 064-48187-000 064-48187-000
* Used to replace Solenoid Valves for reduced steps of unloading. See Table 1.
LEGEND (Cont’d.)
FORM 180.23-RP4
YORK INTERNATIONAL 7
FIG. 4 UNLOADING DEVICE
LD02968
TABLE 1 PART QUANTITIES FOR REDUCED STEPS OF UNLOADING
ITEM DESCRIPTION PART
NO. NO.
38 Unloader, Blocked Suction
38A Piston 064-48189-000
38B Washer, Seal 028-12560-000
38C Screw, Cap Hex Socket Head 021-17396-000
38D Sealer, Loctite Grade AVV 013-01671-000
38E Washer, Plain Special 021-17220-000
38F Ring, Compression 029-20999-000
ITEM
QUANTITY (Part Quantities Vary, as Shown, with Steps of Unloading)
NO. NUMBER OF UNLOADERS
012 3
38 0 1 2 3
39 0 1 2 3
40 0 1 2 3
54W 11 11 13 15
72 (4 Cylinder) 1 0 N/A N/A
72 (6 Cylinder) 2 1 0 N/A
72 (8 Cylinder) 3 2 1 0
N/A = Not Available
8 YORK INTERNATIONAL
LD03722
ITEM NO. DESCRIPTION PART NUMBER
s
47 Cage, Discharge Valve Assembly 364-48785-000
Includes A, B, C, D, E, & F
47A Cage, Discharge Valve 064-48787-000
47B Plate, Inner Valve 064-48032-000
47C Ring, Discharge Valve 064-43012-000
47D Screw, 3/8 Button Head Cap 021-17649-000
47E Nut, 3/8 Hex Self Locking 021-09932-000
47F Spring, Helical 021-21788-000
No. Req’d. Per Valve Ass’y 6
FIG. 5 DISCHARGE VALVE CAGE ASSEMBLY
S = Recommended Stock Spare Part
ITEM NO. DESCRIPTION PART NUMBER
47 Cage, Discharge Valve Assembly 664-48037-000
Includes A, B, C, D, E, & F
47A Cage, Discharge Valve 064-43146-000
47B Plate, Inner Valve 064-48032-000
47C Valve, Discharge 064-43012-000
47D Screw, 3/8 Button Head Cap 021-17649-000
47E Nut, 3/8 Hex Self Locking 021-09932-000
47F Spring, Helical 021-13248-001
No. Req’d. Per Valve Ass’y 6
*Not Shown
PRE 1996 DISCHARGE ASSY.
CURRENT DISCHARGE ASSY.
47D
47B 47C
47A
47E
47F 28953A
FORM 180.23-RP4
YORK INTERNATIONAL 9
WAVE SPRING SUCTION VALVE ASSEMBLY 664-49291-000
FIG. 6 SUCTION VALVE PLATE ASSEMBLY
ITEM DESCRIPTION PART NUMBER
NO. WAVE ASS’Y
S49 Plate, Suction Valve Assembly 664-49291-000
Includes Items A, B, & C
49A Plate, Valve 664-49298-000
49B Ring, Suction Valve 022-09743-000
49C Spring (Package of 2 Waves) 222-09742-800
No. Req’d. Per Valve Ass’y 2 (Wave)
S = Recommended Stock Spare Part
28636A(R)
49A
664-49268
SUCTION VALVE PLATE (1)
49B
022-09743
SUCTION VALVE (1)
(VALVE RING)
CLIPS (2)
(OPTIONAL)
USER SUPPLIED
064-03447-000
49C
WAVE SPRINGS (2)
(WAVE RING)
222-09742-800 (Packs of 2)
10 YORK INTERNATIONAL
ITEM NO. DESCRIPTION PART NUMBER
52 Piston Assembly 664-46757-000
Includes A, B, C, & D
52A Piston, Bare 064-46538-000
52B Ring, Piston (2 Req’d. Per Piston) 029-15175-000
52C Pin, Piston 029-13090-000
52D Retainer (2 Req’d. Per Piston) 029-13091-000
ITEM DESCRIPTION PART NUMBER
NO. SHORT STROKE LONG STROKE
53 Connecting Rod Assembly (with Wrist Pin 664-49011-000 664-49012-000
Lube Circuit required for POE Lubricants)
Includes Items A, B, & C
(Replaces Rod Assembly) (Undrilled) 664-47256-000 664-47257-000
53A Screw, 5/16 Hex Cap 021-13665-000 021-13665-000
No. Req’d. Per Connecting Rod 2 2
53B Washer (Package of 10) 221-01262-800 221-01262-800
No. Req’d. Per Connecting Rod 2 2
53C Dowel Pin 029-19802-000 029-19802-000
No. Req’d. Per Connecting Rod 2 2
FIG. 7 PISTON ASSEMBLY
FIG. 8 CONNECTING ROD ASSEMBLY
LD03066
23369-2a
53
53C
53A 53B
52A
52B
52C
52D
NOTE: NEW DRILLED RODS (Wrist Pin Lube) may be mixed w/ undrilled on R-22 applications only.
FORM 180.23-RP4
YORK INTERNATIONAL 11
ITEM NO. DESCRIPTION PART NUMBER
BEARING HEAD OIL PUMP END
20 Head, Bearing Assembly (Oil Pump End) 664-48188-000
Includes A, B, C, D, E, & F
20A Bearing, Crankshaft 029-11097-000
20B Pipe Plug, 3/8 Hex Socket 023-04298-000
20C Pipe Plug, 1/8 Hex Socket 023-01970-000
20D Sealer, Loctite Grade AVV 013-01671-000
(Use with Items 20B and 20C)
20E Pipe Plug, 1/4 Square Head 023-01972-000
20F Sealer, Removable Thread (Use with Item 20E) 013-01678-000
Head, Bearing (Oil Pump End) 064-48173-000
(Does Not Include Items A, B, C, D, E & F)
ITEM NO. DESCRIPTION PART NUMBER
BEARING HEAD MOTOR END
23 Head, Bearing Assembly (Motor End) 664-47221-000
Includes A, B, C, D, E, F & G)
23A Bearing, Crankshaft (2 Required) 029-11097-000
23B Cap, Seal, Oil Relief Valve (See Insert A) 065-06394-000
23C Plunger, Oil Relief Valve (See Insert A) 065-01331-000
23D Spring, Helical (See Insert A) 029-06143-000
23E Plug, Pipe Flush Type Hex Socket 023-05366-000
23F Sealer, Loctite Grade AVV (Use with Item 23E) 013-01671-000
23G Pin, Slot 1/8 Spring 029-05395-000
Head, Bearing (Motor End) 064-47220-000
(Does Not Include Items A, B, C, D, E, F & G)
LD03723
LD03724
MOTOR END
FIG. 9 BEARING HEADS
PUMP END
12 YORK INTERNATIONAL
FIG. 10 TERMINAL BOX
LD03725
LD03726
FORM 180.23-RP4
YORK INTERNATIONAL 13
FIG. 10 TERMINAL BOX (Cont’d.)
ITEM NO. DESCRIPTION QUANTITY PART NO.
54 Terminal Box 1 664-48175-000
54A Cover, Terminal Box 1 064-47459-000
54B Screw, Tap 9 021-13784-000
54C Lockwasher, Internal Tooth 6 021-01133-000
54D Screw, Pan Head 2 021-03743-000
54E Screw, 3/8 Hex Flange 16 021-17691-000
54F Lockwasher, 3/8 Internal Tooth 4 021-01155-000
54G Washer, Plain, 7/16 ID x 1 OD 16 021-01267-000
54H Bolt, Terminal 6 021-12696-000
54I Gasket, Terminal Bolt, 13/16 OD 6 064-36151-000
54J Washer, Terminal Bolt (Package of 10) 228-09410-800
No. of Washers Req’d Per Compressor 12
54K Washer, Plain 6 021-17646-000
54L Nut, 7/16 Hex (Package of 6) 221-12724-800
No. of Nuts Req’d Per Compressor 18
54M Lockwasher, 7/16 Internal Tooth 6 021-16246-000
54N Screw, Cap Hex Soc Hd (Package of 5) 221-14817-800
No. of Screws Req’d. Per Compressor 4
54O Terminal, Overload 8 025-18650-000
54P Washer, Plain, 3/16 ID (Package of 5) 221-01240-800
No. of Washers Req’d. Per Compressor 4
54Q Seal, O-Ring, 5/32 ID 4 028-09347-000
54R Washer, Terminal (Package of 10) 228-09525-000
No. of Washers Req’d. Per Compressor 8
54S Nut, Hex, Machine Screw 4 021-08661-000
54T Terminal Block 1 025-30402-000
54U Gasket, Terminal Block 1 028-12557-000
54V Spacer, Insulating 2 064-47346-000
54W Terminal Block, Flat Base See Table 1 025-20944-000
54X Terminal Block End 1 025-20946-000
54Y Bar, Jumper* 1 064-47424-000
54Z Module, Motor Protector; Control Voltage: 1
24V 025-29939-000
120V Dual Voltage, Auto Reset 025-32539-000
240V Dual Voltage, Auto Reset 025-32539-000
* (Not Shown) Used in Across-the-Line Applications.
14 YORK INTERNATIONAL
LD03067
ITEM NO. DESCRIPTION PART NO.
CRANKCASE FLOAT 364-26809-000 Includes:
Float Assembly 364-45530-000
1 Cover, Handhole 364-26808-000
2 Adaptor 064-26807-000
3 Valve Body 064-45531-000
4 Lever, Float 068-04542-000
5 Valve, Float 068-04545-000
6 Pin, Valve 068-01594-000
7 Pin, Lever 064-02071-000
8 Ball, Float 022-00530-000
9 Nut-Hex Self-Locking (Pkg. of 5) 221-09610-800
10 Lockwasher 021-05273-000
11 Nut, Hex Jam (Package of 10) 221-08073-800
12 Pin, Roll (Package of 5) 229-08228-800
13 Gasket, Copper 028-03014-000
NOTES:
1. As Indicated by sixth digit of model. Replacement motor must be the same size code and voltage code as the original motor. Rotors and
stators are not available separately. Replacement motors include Item 54H, Fig. 10, Page 13.)
2. The unused protector leads should be cut off in the area where they exit the bundle. They should be cut off at different lengths (approximately
1/4" difference) to prevent the bare ends from touching one another. The remaining portion of the unused protector leads must then
be ty-rapped rigidly to the stator coils to prevent the exposed ends from touching any other component.
YORK REMANUFACTURED COMPRESSORS ARE AVAILABLE FROM
THE YORK REMANUFACTURING FACILITY IN
WHEELING, ILLINOIS. FOR PRICES AND/OR AVAILABILITY,
CALL 1-800-537-9675 OR FAX 1-708-541-0943.
FOR AFTER HOURS EMERGENCY SERVICE,
CALL 1-708-541-9466
VOLT MOTOR SIZE CODE2
VOLTAGE CODE MNPQS T V
200-3-60 17 364-47924-001 364-47924-008 364-47924-015 364-47924-022 364-47924-029
230-3-60/190-3-50 28/59 364-47924-002 364-47924-009 364-47924-016 364-47924-023 364-47924-030
380-3-60 40 364-47924-003 364-47924-010 364-47924-017 364-47924-024 364-47924-031 364-47924-039 364-47924-047
460-3-60/380/415-3-50 46/50 364-47924-004 364-47924-011 364-47924-018 364-47924-025 364-47924-032 364-47924-040 364-47924-048
575-3-60/500-3-50 58/70 364-47924-005 364-47924-012 364-47924-019 364-47924-026 364-47924-033 364-47924-041 364-47924-049
220-3-50 63 364-47924-006 364-47924-013 364-47924-020 364-47924-027 364-47924-034
440-3-50 43 364-47924-007 364-47924-014 364-47924-021 364-47924-028 364-47924-035 364-47924-043 364-47924-051
346-3-50 64 364-47924-101 364-47924-102 364-47924-103 364-47924-104 364-47924-105 364-47924-106 364-47924-107
york-02632839000-parts
york-02632839000-partsyork-02632839000-partsyork-02632839000-partsyork-02632839000-partsyork-02632839000-partsyork-02632839000-partsyork-02632839000-partsyork-02632839000-partsyork-02632839000-partsyork-02632839000-partsyork-02632839000-partsyork-02632839000-partsyork-02632839000-partsyork-02632839000-partsyork-02632839000-partsyork-02632839000-partsyork-02632839000-partsyork-02632839000-partsyork-02632839000-partsyork-02632839000-partsyork-02632839000-partsyork-02632839000-partsyork-02632839000-partsyork-02632839000-partsyork-02632839000-partsyork-02632839000-partsyork-02632839000-partsyork-02632839000-partsyork-02632839000-parts
06NA660088
23XL660009
OOPPG128000
KH11NG070
KH45 LE120
06NA660088
30 GX417134/133 E
30 GX417134S
KH29EZ050
KH29EZ070
KH43 EA30321
8 TB320
P502-8415
02XR05006201
02XR05009501
KH42ME060
23XL660016
York Accessories

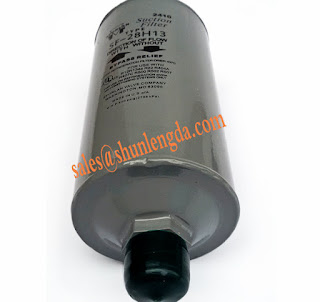

026-32839-000
026-37563-000
026-32841-000
026-43089-000
026-35601-000
026-36838-000
026-14777-007
026-13508-000
026-32831-000
026-32386-000
025-29664-000
Terling Accessories
Terling DHY00337
DHY01474
FLR01592
ELM01042
ELM01405
FLR 01353
FLR00779
FLR03018
FLR03318
FLR01917
FLR 03434
30E 31441
DHY01472
KIT07614
FLR 07138
Maikeweier accessories
73506904
73506907
7384-188
3321 5201
7350 85708
Fusheng Accessories
26170 20250(outer thread)
26170 21551
Valve
Lai Fuk Kang
503446(502973)
502830
502989
502918
502440
502220
Bizeer
362105-03(65)
362105-01(75)
362105-02(85)
362105-02(95)
Hanzhong Accessories
31301-1143 CC
31303-1143 CC
31307-114DC
31336-3146DC Large External
32301-3146BC trumpet external
32303-3146BC Medium External
MR DENG
SHUNLENGDA ELECTRIC APPLIANCES, INC
MOB: +8613824368478 Wechat: 13824368478
WEB: www.sunlengda.com
Email: Sales@shunlengda.com: Sunengda
ADD: Row 08 of Pioneer Industrial Zone in Nanshan Division, Shenzhen, China
OOPPG128000
KH11NG070
KH45 LE120
06NA660088
30 GX417134/133 E
30 GX417134S
KH29EZ050
KH43 EA30321
8 TB320
P502-8415
02XR05006201
02XR05009501
KH42ME060
23XL660016
York Accessories
026-32839-000
026-37563-000
026-32841-000
026-43089-000
026-35601-000
026-36838-000
026-14777-007
026-13508-000
026-32831-000
026-32386-000
025-29664-000
Terling Accessories
Terling DHY00337
DHY01474
FLR01592
ELM01042
ELM01405
FLR 01353
FLR00779
FLR03018
FLR03318
FLR01917
FLR 03434
30E 31441
DHY01472
KIT07614
FLR 07138
Maikeweier accessories
73506904
73506907
7384-188
3321 5201
7350 85708
Fusheng Accessories
26170 20250(outer thread)
26170 21551
Valve
Lai Fuk Kang
503446(502973)
502830
502989
502918
502440
502220
Bizeer
362105-03(65)
362105-01(75)
362105-02(85)
362105-02(95)
Hanzhong Accessories
31301-1143 CC
31303-1143 CC
31307-114DC
31336-3146DC Large External
32301-3146BC trumpet external
32303-3146BC Medium External
MR DENG
SHUNLENGDA ELECTRIC APPLIANCES, INC
MOB: +8613824368478 Wechat: 13824368478
WEB: www.sunlengda.com
Email: Sales@shunlengda.com: Sunengda
ADD: Row 08 of Pioneer Industrial Zone in Nanshan Division, Shenzhen, China
024-25504-000-YORK PARTS
Pres. No. Name Type No. Name List 产 产 (Quality) Number of Technology Number Fixed Quantity PN
01 1M to 4M contactor A110-30-11 ABB AC110V 4 024G00016-007
5M to 6M 02 Contactor A9D-30-10 ABB AC110V 4 024G00016-010
8M to 9M
5OL to 6OL 03 Motor starter MS 325 4 to 6.3A ABB AC690V 4 026G00070-001 8OL to 9OL
04 1CT, 2CT Current Switch BH-0.66-40II Hangzhou Heian 500 / 0.2A 2 025G 00037-016
JBK3-100
05 2T fixture import AC120V positive correction 1 025G00009-012
Suicide AC24V
06 terminal SAK2.5EN Weidmuller 36 025G00016-034
SVC-1500VA
07 稳压 60 to 130 V OIANXING 1 062G60202-001
110 V outing
08 Power supply plate offer 1 031-01348C-000
09 I / O 板 约 1 031-01869-000
10 processing equipment board offer about 1 1 031-01095-002
11 电 板 约 1 031-01093C-000
12 Marking board provided about 1 1 031-01110C-000
13 提供 提供 1 024-25517-000
14 约 offer 1 024-25504D-000
15 core pieces provided about 1 031-01652-001
16 键盘 Operation Outsourcing Offers About 1 031-01109-213
Providing information about 17 17 2 031-01109-212
18 约 offer 1 031-01724-211
01 1M to 4M contactor A110-30-11 ABB AC110V 4 024G00016-007
5M to 6M 02 Contactor A9D-30-10 ABB AC110V 4 024G00016-010
8M to 9M
5OL to 6OL 03 Motor starter MS 325 4 to 6.3A ABB AC690V 4 026G00070-001 8OL to 9OL
04 1CT, 2CT Current Switch BH-0.66-40II Hangzhou Heian 500 / 0.2A 2 025G 00037-016
JBK3-100
05 2T fixture import AC120V positive correction 1 025G00009-012
Suicide AC24V
06 terminal SAK2.5EN Weidmuller 36 025G00016-034
SVC-1500VA
07 稳压 60 to 130 V OIANXING 1 062G60202-001
110 V outing
08 Power supply plate offer 1 031-01348C-000
09 I / O 板 约 1 031-01869-000
10 processing equipment board offer about 1 1 031-01095-002
11 电 板 约 1 031-01093C-000
12 Marking board provided about 1 1 031-01110C-000
13 提供 提供 1 024-25517-000
14 约 offer 1 024-25504D-000
15 core pieces provided about 1 031-01652-001
16 键盘 Operation Outsourcing Offers About 1 031-01109-213
Providing information about 17 17 2 031-01109-212
18 约 offer 1 031-01724-211
coupling 029W20892-000
York Inverter 026-35036-000
Compressor Seal 029 22938 000
Water temperature sensor 025.29964.000

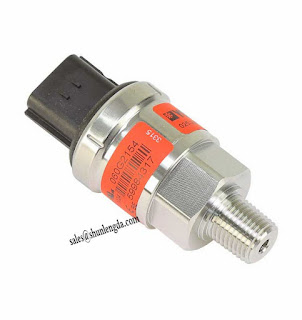

025 29139 001
Master Control Board 031 02430 601
031 01771 000 parts
025-40334-000 Sensor, WaterTem.(EWT,LWT)
025-32924-000 Sensor, Discharge Temperature
025-28935-000 Sensor, Suction Temperature
025-30440-000 Sensor, Oil Temperature
025-29139-003 Transducer, Oil Pressure(0-275psi)
025-29583-001 Transducer, Suction Pressure
013-03344-000 Coolent Propylene Glycol 1 x 5 gal
011-00592-000 Oil, Compressor (Type'L) 5 x 5
026-37540-000 Core, Dehydrator (48 size, 3 nos. per set)
025-41565-000 Valve, Electronic Expansion
022-11312-000 Valve, Relief
025-40330-000 Valve, Solenoid
025-43503-000 Supersede to 025-40274-000 Sensor, Refrig Level
026-35601-000 Oil filter
028-13849-000 O'ring
MR DENG
SHUNLENGDA ELECTRIC APPLIANCES,INC
MOB: +8613824368478 Wechat: 13824368478
WEB: www.shunlengda.com
Email:sales@shunlengda.com Skype:shunlengda
ADD:Row 08 of Pioneer Industrial Zone in Nanshan District, Shenzhen, China
YORK-025-40334-000-Water-Temp-Sensorjpg
025-30440-000-parts
York 013-03344-000 Coolent Propylene Glycol
York seal parts
Machine (electro-conductive machine) AWHC main fan SFZ-9 # 8 2.2 2.2 KW 026 G 00092-001 4
Two desks PC632-Q46 / 50 364W49834-901 1
Three AWHC six discharge left-handed tube 362G50240A000 2
Four AWHC six exhaust right type tube 362G50241A000 2
Five control expansion TEV TDEBX20 N DFS 022G00002-023 4
6 cold expansion and contraction Y943- OVE-CP100 (VCP 100 63-3) 025L01242-000 1
7 bowl-type fixtures DXH 1207H 366W04408H000 1
8 quadruple PE121-YR 025L0178-000 1
9 drying container housing 1-3 / 8 x 1-3 / 8in 026G00029-041 1
10 wicks 026-18328-000 2
11 视 带 (welding) 1-3 / 8 "ODF 026L00255-000 1
12 heat insulation backrest 1-1 / 8 "CV11P-18FS-18FS 022G00001-008 4
13 cessation reverse cover 1-3 / 8 "ODF 068L00450-000 1
14 阀 1-3 / 8 "ODF 022G00007-002 2
15 stop rings 1/4 "NPT × 1/4" FL 022G00007-001 2
16 压 15.9 / 12.4 bar 025L02265-000 1
17 压 2 17.2 / 13.8 bar 025L02266-000 1
18 18.6 / 15.2 bar 025L02267-000 1
19 Takahata Disconnected Road 27.9 BAR 025L01661-001 1
20 High-speed break off road 25 BAR 025L01788-000 1
21 oil temperature / defrosting sensor 025L02246-000 2
22 Water temperature / environmental temperature sensor 025L02247-000 2
23 heat exchangers 280W 240V 025L00283-000 1
24 heather box heater 025L02297-000 1
25 Electric storage package AWHC-L 025-29939-000 1
26 Power supply connection AWHC 023G00029A009 1
27 Power supply connection plate 362L10601-002 1
28 AWHC steam liquid distributor 026G00069-005 1
29 AWHC drop down box 362G50216-001 1
30 Easy blockage 1/4 "NPT 75 ° C 023G00017-001 2
31 Safety device 3/8 "NPT x 1/2" FL 400 PSI 022G00008-001 1
32 water flow system LKB-01BB 024G00009-002 1
33 interference vibrator ZGT2-14 028G00031-002 4
34 Earthquake Resistant 5/16 "x 1.1 / 4" 028G00036-000 4
35 支 垫 028G00030A000 4
36 Self-sealing pipe joint (两头 外 纹) 1/4 "FLM × 1/4" FL FEM 023G00025-007 2
37 Self-closing cap and cap 1/4 "022G00004-002 5
38 Self-sealing pipe connection 1/4 "NPT × 1/4" FL 023G00025-004 2
39 Separate plate connection 1/4 "FL 023G00025-006 6
40 three through 1.1 / 8 × 1.1 / 8 × 1.3 / 8 in 023G00004A029 1
41 铜 three passes 1.3 / 8 × 1.3 / 8 × 1.3 / 8 in 023G 00004A 004 1
42 three through 1.5 / 8 × 1.5 / 8 × 2.1 / 8 in 023G00004 009 2
43 three through 1.5 / 8 × 1.5 / 8 × 3.1 / 8 in 023G00004A028 1
6YORKGZ AWHC 风 热 标 组 制 制 控 控 控 单 单 单
Three: AWHC-L75 Major zero part and cold distribution matters
Precedent part description description type part number
1 风 含 机 AWHC Main fan SF SFZ-9 # 8 极 2.2 KW 026G00092-001 4
Two desks PC642-S46 / 50 364W49836-901 1
Three AWHC six discharge left-handed tube 362G50240A000 2
Four AWHC six exhaust right type tube 362G50241A000 2
Five control expansion TEV TDEBX20 N DFS 022G00002-023 4
6 cold expansion and contraction Y943- OVE-CP100 (VCP 100 63-3) 025L01242-000 1
7 bowl-type fixtures DXH 1207H 366W04408H000 1
8 quadruple PE121-YR 025L0178-000 1
9 drying container housing 1-3 / 8 x 1-3 / 8in 026G00029-041 1
10 wicks 026-18328-000 2
11 视 带 (welding) 1-3 / 8 "ODF 026L00255-000 1
12 heat insulation backrest 1-1 / 8 "CV11P-18FS-18FS 022G00001-008 4
13 cessation reverse cover 1-3 / 8 "ODF 068L00450-000 1
14 阀 1-3 / 8 "ODF 022G00007-002 2
15 stop rings 1/4 "NPT × 1/4" FL 022G00007-001 2
16 压 15.9 / 12.4 bar 025L02265-000 1
17 压 2 17.2 / 13.8 bar 025L02266-000 1
18 18.6 / 15.2 bar 025L02267-000 1
19 Takahata Disconnected Road 27.9 BAR 025L01661-001 1
20 High-speed break off road 25 BAR 025L01788-000 1
21 oil temperature / defrosting sensor 025L02246-000 2
22 Water temperature / environmental temperature sensor 025L02247-000 2
23 heat exchangers 280W 240V 025L00283-000 1
24 heather box heater 025L02297-000 1
25 Electric storage package AWHC-L 025-29939-000 1
26 Power supply connection AWHC 023G00029A009 1
27 Power supply connection plate 362L10601-002 1
28 AWHC steam liquid distributor 026G00069-005 1
29 AWHC drop down box 362G50216-001 1
30 Easy blockage 1/4 "NPT 75 ° C 023G00017-001 2
31 Safety device 3/8 "NPT x 1/2" FL 400 PSI 022G00008-001 1
32 water flow system LKB-01BB 024G00009-002 1
33 interference vibrator ZGT2-14 028G00031-002 4
34 Earthquake Resistant 5/16 "X 1.1 / 4" 028G00036-000 4
35 支 垫 028G00030A000 4
36 Self-sealing pipe joint (两头 外 纹) 1/4 "FLM × 1/4" FL FEM 023G00025-007 2
37 Self-closing cap and cap 1/4 "022G00004-002 2
38 Self-sealing pipe connection 1/4 "NPT × 1/4" FL 023G00025-004 5
39 Separate plate connection 1/4 "FL 023G00025-006 6
40 three through 1.1 / 8 × 1.1 / 8 × 1.3 / 8 in 023G00004A029 1
41 铜 three passes 1.3 / 8 × 1.3 / 8 × 1.3 / 8 in 023G 00004A 004 1
42 three through 1.5 / 8 × 1.5 / 8 × 2.1 / 8 in 023G00004 009 2
43 three through 1.5 / 8 × 1.5 / 8 × 3.1 / 8 in 023G00004A028 1
7 YORKGZ AWHC 风 热 标 组 制 制 控 控 控 单 单 单
Four: AWHC-LHE90 major major components and cold distribution conditions
Precedent part description description type part number
1 风 含 机 AWHC Main fan SF SFZ-9 # 8 极 2.2 KW 026G00092-001 4
2 压缩 PC833-S46 / 50 364W49839-901 1
Three AWHC six discharge left-handed tube 362G50240A000 2
Four AWHC six exhaust right type tube 362G50241A000 2
Five control expansion TEV TDEBX26N DFS 022G00002-021 4
6 cold expansion and contraction VVE-100-CP100 (VCP100 63) 022G00002-004 1
7 bowl-type fixtures DXH 1207H 366W04408H000 1
8 quadruple PE121-YR 025L0178-000 1
9 drying container housing 1-3 / 8 x 1-3 / 8in 026G00029-041 1
10 wicks 026-18328-000 2
11 视 带 (welding) 1-3 / 8 "ODF 026L00255-000 1
12 heat insulation backrest 1-1 / 8 "CV11P-18FS-18FS 022G00001-008 4
13 cessation reverse cover 1-3 / 8 "ODF 068L00450-000 1
14 阀 1-3 / 8 "ODF 022G00007-002 2
15 stop rings 1/4 "NPT × 1/4" FL 022G00007-001 2
16 压 15.9 / 12.4 bar 025L02265-000 1
17 压 2 17.2 / 13.8 bar 025L02266-000 1
18 18.6 / 15.2 bar 025L02267-000 1
19 Takahata Disconnected Road 27.9 BAR 025L01661-001 1
20 High-speed break off road 25 BAR 025L01788-000 1
21 oil temperature / defrosting sensor 025L02246-000 2
22 Water temperature / environmental temperature sensor 025L02247-000 2
23 heat exchangers 280W 240V 025L00283-000 1
24 heather box heater 025L02297-000 1
25 Electric storage package AWHC-L 025-29939-000 1
26 Power supply connection AWHC 023G00029A009 1
27 Power supply connection plate 362L10601-002 1
28 AWHC steam liquid distributor 026G00069-005 1
29 AWHC drop down box 362G50216-001 1
30 Easy blockage 1/4 "NPT 75 ° C 023G00017-001 2
31 Safety device 3/8 "NPT x 1/2" FL 400 PSI 022G00008-001 1
32 water flow system LKB-01BB 024G00009-002 1
33 interference vibrator ZGT2-14 028G00031-002 4
34 Earthquake Resistant 5/16 "x 1.1 / 4" 028G00036-000 4
35 支 垫 028G00030A000 4
36 Self-sealing pipe joint (两头 外 纹) 1/4 "FLM × 1/4" FL FEM 023G00025-007 2
37 Self-closing cap and cap 1/4 "022G00004-002 5
38 Self-sealing pipe connection 1/4 "NPT × 1/4" FL 023G00025-004 2
39 Separate plate connection 1/4 "FL 023G00025-006 6
40 three through 1.1 / 8 × 1.1 / 8 × 1.3 / 8 in 023G00004A029 1
41 铜 three passes 1.3 / 8 × 1.5 / 8 × 1.5 / 8 in 023G00004A010 1
42 three through 1.5 / 8 × 1.5 / 8 × 2.1 / 8 in 023G00004 009 2
43 three through 1.5 / 8 × 1.5 / 8 × 3.1 / 8 in 023G00004A028 1機器（導電機）AWHC主風機SFZ-9＃8 2.2 2.2 KW 026 G 00092-001 4
兩張桌子PC632-Q46 / 50 364W49834-901 1
三個AWHC六個放電左手管362G50240A000 2
四個AWHC六排氣右管362G50241A000 2
五控擴展TEV TDEBX20 N DFS 022G00002-023 4
6冷膨脹和收縮Y943- OVE-CP100（VCP 100 63-3）025L01242-000 1
7碗式固定裝置DXH 1207H 366W04408H000 1
8個四重PE121-YR 025L0178-000 1
9乾燥容器外殼1-3 / 8 x 1-3 / 8in 026G00029-041 1
10個燈芯026-18328-000 2
11視帶（焊接）1-3 / 8“ODF 026L00255-000 1
12隔熱靠背1-1 / 8“CV11P-18FS-18FS 022G00001-008 4
13停止反向蓋1-3 / 8“ODF 068L00450-000 1
14閥門1-3 / 8“ODF 022G00007-002 2
15個止動環1/4“NPT×1/4”FL 022G00007-001 2
16壓15.9 / 12.4 bar 025L02265-000 1
17壓2 17.2 / 13.8 bar 025L02266-000 1
18 18.6 / 15.2 bar 025L02267-000 1
19 Takahata Disconnected Road 27.9 BAR 025L01661-001 1
20高速斷路25 BAR 025L01788-000 1
21油溫/除霜傳感器025L02246-000 2
22水溫/環境溫度傳感器025L02247-000 2
23換熱器280W 240V 025L00283-000 1
24石楠箱加熱器025L02297-000 1
25電動存儲包AWHC-L 025-29939-000 1
26電源連接AWHC 023G00029A009 1
27電源連接板362L10601-002 1
28 AWHC蒸汽液體分配器026G00069-005 1
29 AWHC下拉框362G50216-001 1
30易堵塞1/4“NPT 75°C 023G00017-001 2
31安全裝置3/8“NPT x 1/2”FL 400 PSI 022G00008-001 1
32水流系統LKB-01BB 024G00009-002 1
33干涉振動器ZGT2-14 028G00031-002 4
34抗震5/16“x 1.1 / 4”028G00036-000 4
35支墊028G00030A000 4
36自密封管接頭（兩頭外紋）1/4“FLM×1/4”FL FEM 023G00025-007 2
37自閉帽和帽1/4“022G00004-002 5
38自密封管接頭1/4“NPT×1/4”FL 023G00025-004 2
39單獨的板連接1/4“FL 023G00025-006 6
在023G00004A029 1中有40個三到1.1 / 8×1.1 / 8×1.3 / 8
41銅三通1.3 / 8×1.3 / 8×1.3 / 8在023G 00004A 004 1
423三到1.5 / 8×1.5 / 8×2.1 / 8在023G00004 009 2
在033G00004A028 1中，43到3 / 1.5 / 8×1.5 / 8×3.1 / 8
6YORKGZ AWHC風熱標組制制控控單單
三：AWHC-L75主要零件和冷配件很重要
先例部分描述描述類型部件號
1風含機AWHC主風扇SF SFZ-9＃8極2.2 KW 026G00092-001 4
兩個辦公桌PC642-S46 / 50 364W49836-901 1
三個AWHC六個放電左手管362G50240A000 2
四個AWHC六排氣右管362G50241A000 2
五控擴展TEV TDEBX20 N DFS 022G00002-023 4
6冷膨脹和收縮Y943- OVE-CP100（VCP 100 63-3）025L01242-000 1
7碗式固定裝置DXH 1207H 366W04408H000 1
8個四重PE121-YR 025L0178-000 1
9乾燥容器外殼1-3 / 8 x 1-3 / 8in 026G00029-041 1
10個燈芯026-18328-000 2
11視帶（焊接）1-3 / 8“ODF 026L00255-000 1
12隔熱靠背1-1 / 8“CV11P-18FS-18FS 022G00001-008 4
13停止反向蓋1-3 / 8“ODF 068L00450-000 1
14閥門1-3 / 8“ODF 022G00007-002 2
15個止動環1/4“NPT×1/4”FL 022G00007-001 2
16壓15.9 / 12.4 bar 025L02265-000 1
17壓2 17.2 / 13.8 bar 025L02266-000 1
18 18.6 / 15.2 bar 025L02267-000 1
19 Takahata Disconnected Road 27.9 BAR 025L01661-001 1
20高速斷路25 BAR 025L01788-000 1
21油溫/除霜傳感器025L02246-000 2
22水溫/環境溫度傳感器025L02247-000 2
23換熱器280W 240V 025L00283-000 1
24石楠箱加熱器025L02297-000 1
25電動存儲包AWHC-L 025-29939-000 1
26電源連接AWHC 023G00029A009 1
27電源連接板362L10601-002 1
28 AWHC蒸汽液體分配器026G00069-005 1
29 AWHC下拉框362G50216-001 1
30易堵塞1/4“NPT 75°C 023G00017-001 2
31安全裝置3/8“NPT x 1/2”FL 400 PSI 022G00008-001 1
32水流系統LKB-01BB 024G00009-002 1
33干涉振動器ZGT2-14 028G00031-002 4
34抗震5/16“X 1.1 / 4”028G00036-000 4
35支墊028G00030A000 4
36自密封管接頭（兩頭外紋）1/4“FLM×1/4”FL FEM 023G00025-007 2
37自閉帽和帽1/4“022G00004-002 2
38自密封管接頭1/4“NPT×1/4”FL 023G00025-004 5
39單獨的板連接1/4“FL 023G00025-006 6
在023G00004A029 1中有40個三到1.1 / 8×1.1 / 8×1.3 / 8
41銅三通1.3 / 8×1.3 / 8×1.3 / 8在023G 00004A 004 1
423三到1.5 / 8×1.5 / 8×2.1 / 8在023G00004 009 2
在033G00004A028 1中，43到3 / 1.5 / 8×1.5 / 8×3.1 / 8
7 YORKGZ AWHC風熱標組制制控控單單
四：AWHC-LHE90主要主要成分和冷配條件
先例部分描述描述類型部件號
1風含機AWHC主風扇SF SFZ-9＃8極2.2 KW 026G00092-001 4
2壓縮PC833-S46 / 50 364W49839-901 1
三個AWHC六個放電左手管362G50240A000 2
四個AWHC六排氣右管362G50241A000 2
五控擴展TEV TDEBX26N DFS 022G00002-021 4
6冷脹和收縮VVE-100-CP100（VCP100 63）022G00002-004 1
7碗式固定裝置DXH 1207H 366W04408H000 1
8個四重PE121-YR 025L0178-000 1
9乾燥容器外殼1-3 / 8 x 1-3 / 8in 026G00029-041 1
10個燈芯026-18328-000 2
11視帶（焊接）1-3 / 8“ODF 026L00255-000 1
12隔熱靠背1-1 / 8“CV11P-18FS-18FS 022G00001-008 4
13停止反向蓋1-3 / 8“ODF 068L00450-000 1
14閥門1-3 / 8“ODF 022G00007-002 2
15個止動環1/4“NPT×1/4”FL 022G00007-001 2
16壓15.9 / 12.4 bar 025L02265-000 1
17壓2 17.2 / 13.8 bar 025L02266-000 1
18 18.6 / 15.2 bar 025L02267-000 1
19 Takahata Disconnected Road 27.9 BAR 025L01661-001 1
20高速斷路25 BAR 025L01788-000 1
21油溫/除霜傳感器025L02246-000 2
22水溫/環境溫度傳感器025L02247-000 2
23換熱器280W 240V 025L00283-000 1
24石楠箱加熱器025L02297-000 1
25電動存儲包AWHC-L 025-29939-000 1
26電源連接AWHC 023G00029A009 1
27電源連接板362L10601-002 1
28 AWHC蒸汽液體分配器026G00069-005 1
29 AWHC下拉框362G50216-001 1
30易堵塞1/4“NPT 75°C 023G00017-001 2
31安全裝置3/8“NPT x 1/2”FL 400 PSI 022G00008-001 1
32水流系統LKB-01BB 024G00009-002 1
33干涉振動器ZGT2-14 028G00031-002 4
34抗震5/16“x 1.1 / 4”028G00036-000 4
35支墊028G00030A000 4
36自密封管接頭（兩頭外紋）1/4“FLM×1/4”FL FEM 023G00025-007 2
37自閉帽和帽1/4“022G00004-002 5
38自密封管接頭1/4“NPT×1/4”FL 023G00025-004 2
39單獨的板連接1/4“FL 023G00025-006 6
在023G00004A029 1中有40個三到1.1 / 8×1.1 / 8×1.3 / 8
41銅三通1.3 / 8×1.5 / 8×1.5 / 8在023G00004A010 1
423三到1.5 / 8×1.5 / 8×2.1 / 8在023G00004 009 2
在033G00004A028 1中，43到3 / 1.5 / 8×1.5 / 8×3.1 / 8
York-028-13849-000-Gasket Kit
York-028-13849-000-Gasket Kit
025-40334-000 Sensor, WaterTem.(EWT,LWT)
025-32924-000 Sensor, Discharge Temperature
025-28935-000 Sensor, Suction Temperature
025-30440-000 Sensor, Oil Temperature
025-29139-003 Transducer, Oil Pressure(0-275psi)
025-29583-001 Transducer, Suction Pressure
013-03344-000 Coolent Propylene Glycol 1 x 5 gal
011-00592-000 Oil, Compressor (Type'L) 5 x 5
026-37540-000 Core, Dehydrator (48 size, 3 nos. per set)
025-41565-000 Valve, Electronic Expansion
022-11312-000 Valve, Relief
025-40330-000 Valve, Solenoid
025-43503-000 Supersede to 025-40274-000 Sensor, Refrig Level
026-35601-000 Oil filter
028-13849-000 O'ring
MR DENG
SHUNLENGDA ELECTRIC APPLIANCES,INC
MOB: +8613824368478 Wechat: 13824368478
WEB: www.shunlengda.com
Email:sales@shunlengda.com Skype:shunlengda
ADD:Row 08 of Pioneer Industrial Zone in Nanshan District, Shenzhen, China
York oil
| 011-00592-000 | Oil, Compressor (Type'L) 5 x 5 |
| 026-37540-000 | Core, Dehydrator (48 size, 3 nos. per set) |
| 025-41565-000 | Valve, Electronic Expansion |
| 022-11312-000 | Valve, Relief |
| 025-40330-000 | Valve, Solenoid |
| 025-43503-000 Supersede to 025-40274-000 | Sensor, Refrig Level |
| 026-35601-000 | Oil filter |
| 028-13849-000 | O'ring |
025-41565-000 Valve, Electronic Expansion
371-01180-223B Supersede to 025-28663-001 Sensor, Outside Air Temperature
025-40334-000 Sensor, WaterTem.(EWT,LWT)
025-32924-000 Sensor, Discharge Temperature
025-28935-000 Sensor, Suction Temperature
025-30440-000 Sensor, Oil Temperature
025-29139-003 Transducer, Oil Pressure(0-275psi)
025-29583-001 Transducer, Suction Pressure
013-03344-000 Coolent Propylene Glycol 1 x 5 gal
011-00592-000 Oil, Compressor (Type'L) 5 x 5
026-37540-000 Core, Dehydrator (48 size, 3 nos. per set)
025-41565-000 Valve, Electronic Expansion
022-11312-000 Valve, Relief
025-40330-000 Valve, Solenoid
025-43503-000 Supersede to 025-40274-000 Sensor, Refrig Level
026-35601-000 Oil filter
028-13849-000 O'ring
025-40334-000 Sensor, WaterTem.(EWT,LWT)
| 371-01180-223B Supersede to 025-28663-001 | Sensor, Outside Air Temperature |
| 025-40334-000 | Sensor, WaterTem.(EWT,LWT) |
| 025-32924-000 | Sensor, Discharge Temperature |
| 025-28935-000 | Sensor, Suction Temperature |
| 025-30440-000 | Sensor, Oil Temperature |
| 025-29139-003 | Transducer, Oil Pressure(0-275psi) |
| 025-29583-001 | Transducer, Suction Pressure |
| 013-03344-000 | Coolent Propylene Glycol 1 x 5 gal |
| 011-00592-000 | Oil, Compressor (Type'L) 5 x 5 |
| 026-37540-000 | Core, Dehydrator (48 size, 3 nos. per set) |
| 025-41565-000 | Valve, Electronic Expansion |
| 022-11312-000 | Valve, Relief |
| 025-40330-000 | Valve, Solenoid |
| 025-43503-000 Supersede to 025-40274-000 | Sensor, Refrig Level |
| 026-35601-000 | Oil filter |
| 028-13849-000 | O'ring |
371-01180-223B Supersede to 025-28663-001
| 371-01180-223B Supersede to 025-28663-001 |
| 371-01180-223B Supersede to 025-28663-001 | Sensor, Outside Air Temperature |
| 025-40334-000 | Sensor, WaterTem.(EWT,LWT) |
| 025-32924-000 | Sensor, Discharge Temperature |
| 025-28935-000 | Sensor, Suction Temperature |
| 025-30440-000 | Sensor, Oil Temperature |
| 025-29139-003 | Transducer, Oil Pressure(0-275psi) |
| 025-29583-001 | Transducer, Suction Pressure |
| 013-03344-000 | Coolent Propylene Glycol 1 x 5 gal |
| 011-00592-000 | Oil, Compressor (Type'L) 5 x 5 |
| 026-37540-000 | Core, Dehydrator (48 size, 3 nos. per set) |
| 025-41565-000 | Valve, Electronic Expansion |
| 022-11312-000 | Valve, Relief |
| 025-40330-000 | Valve, Solenoid |
| 025-43503-000 Supersede to 025-40274-000 | Sensor, Refrig Level |
| 026-35601-000 | Oil filter |
| 028-13849-000 | O'ring
MR DENG
SHUNLENGDA ELECTRIC APPLIANCES,INC
MOB: +8613824368478 Wechat: 13824368478 WEB: www.shunleng Email:sales@shunle ADD:Row 08 of Pioneer Industrial Zone in Nanshan District, Shenzhen, China |
Subscribe to:
Posts (Atom)
